Auto Exposure Algorithms
Capturing a high-quality image begins with proper exposure. If too much light reaches the image sensor, bright areas become overexposed and lose detail. If too little light is captured, shadow regions become too dark, making important features difficult to see. Maintaining the right balance is essential for producing clear, usable images. This is where Auto Exposure (AE) algorithms play a critical role. Auto Exposure is a core function of the Image Signal Processor (ISP) that continuously adjusts camera settings to achieve the optimal brightness for a scene. By automatically controlling exposure parameters, AE algorithms allow cameras to adapt to changing lighting conditions without requiring manual adjustments.
Understanding Auto Exposure algorithms is essential when developing camera systems for applications such as automotive, robotics, industrial automation, medical devices, security, and embedded vision.

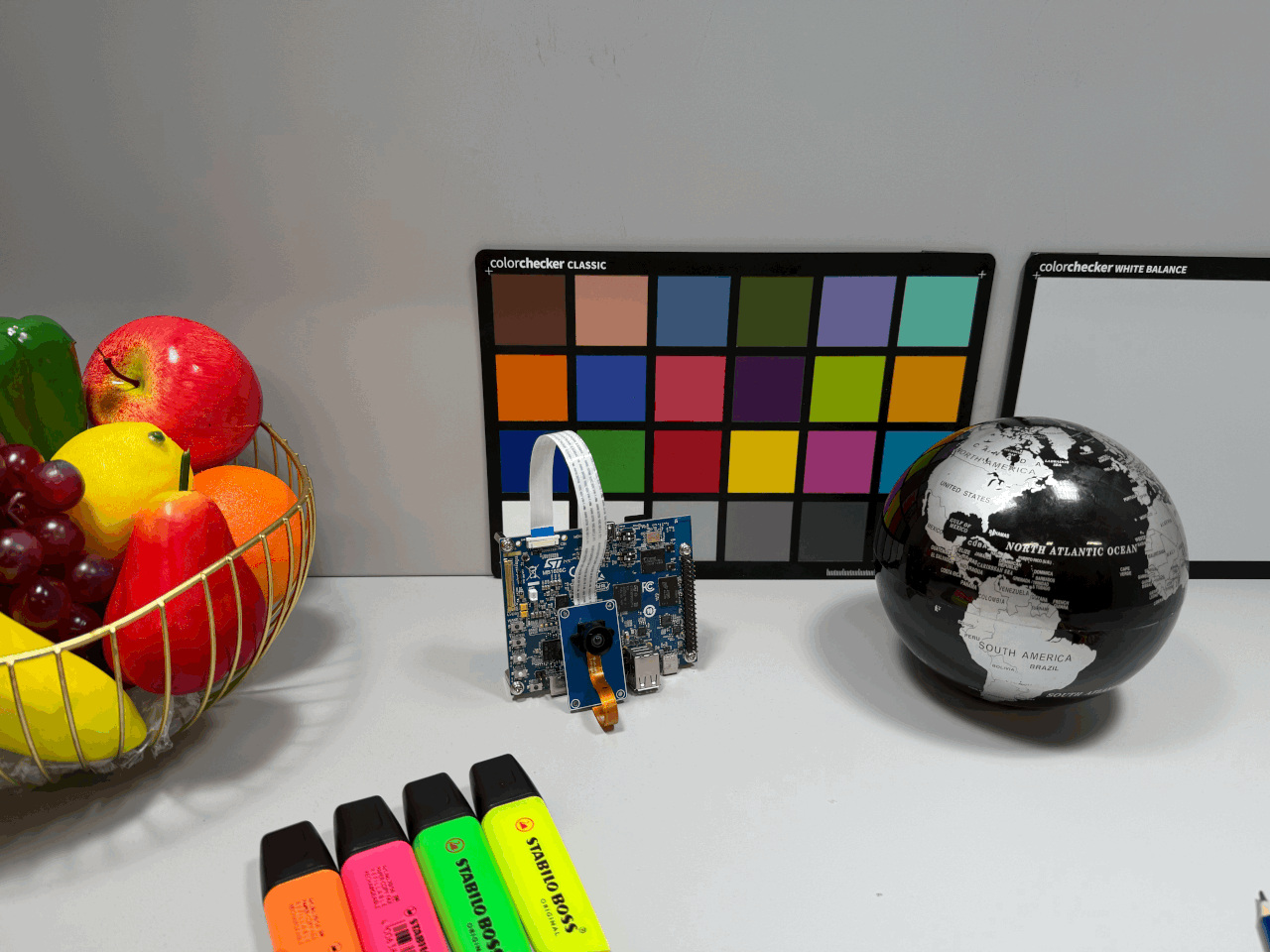

Understanding Auto Exposure
Auto Exposure is the process of automatically controlling how much light reaches the image sensor. The ISP analyzes each captured frame and determines whether the image is too bright, too dark, or properly exposed. To achieve the desired brightness, the camera adjusts one or more exposure parameters, including:
-
Exposure time (shutter speed)
-
Analog gain
-
Digital gain
-
Iris aperture (when available)
These adjustments are made continuously while the camera is operating, allowing the imaging system to respond quickly to changing environments.
How Auto Exposure Algorithms Work
The Auto Exposure process begins after the camera captures an image. The ISP analyzes the brightness distribution across the frame by measuring pixel intensity values. Based on this information, the AE algorithm compares the current image to a target exposure level.
If the image is underexposed, the algorithm increases the amount of light captured by extending the exposure time, increasing sensor gain, or adjusting the aperture if the lens supports it. If the image is overexposed, the algorithm reduces exposure by shortening the shutter time, lowering gain, or decreasing the aperture.
This process repeats continuously, allowing the camera to maintain consistent brightness even as lighting conditions change.
The Three Main Exposure Controls
Auto Exposure algorithms typically manage three primary camera settings.
Exposure Time:
Exposure time, often referred to as shutter speed, determines how long the image sensor collects light. Longer exposure times brighten the image but may introduce motion blur if the camera or subject is moving. Shorter exposure times reduce motion blur but capture less light, making the image darker.
Analog Gain:
Analog gain amplifies the electrical signal generated by the image sensor before it is converted into digital data. Increasing analog gain brightens the image without changing exposure time, making it useful when motion blur must be minimized. However, higher gain also increases image noise, particularly in low-light conditions.
Digital Gain:
Digital gain increases image brightness after the sensor data has been digitized. Although it can improve brightness, digital gain also amplifies both image details and noise. For this reason, most camera systems prioritize exposure time and analog gain before applying digital gain.
Exposure Strategies
Different applications require different Auto Exposure strategies. Some systems prioritize maintaining consistent brightness, while others focus on minimizing motion blur or preserving image quality.
For example:
-
Security cameras often use longer exposure times at night to improve visibility.
-
Automotive cameras typically prioritize faster shutter speeds to reduce motion blur while driving.
-
Industrial inspection systems often use fixed exposure settings for repeatable measurements under controlled lighting.
-
Robotics applications balance exposure time and gain to maintain both image clarity and real-time performance.
The AE algorithm is tuned according to the specific requirements of the application.
Auto Exposure and HDR
Auto Exposure plays an important role in High Dynamic Range (HDR) imaging. Many HDR systems capture multiple exposures of the same scene using different exposure times. The AE algorithm determines the optimal exposure values for each frame before the ISP combines them into a single HDR image.
Proper exposure control is essential for preserving detail in both bright highlights and dark shadows while minimizing artifacts during HDR processing.
Auto Exposure vs. Auto Gain
Auto Exposure and Auto Gain are closely related but serve different functions. Auto Exposure manages the overall exposure strategy by determining how the camera should balance shutter speed, analog gain, digital gain, and aperture. Auto Gain specifically adjusts sensor amplification to increase or decrease brightness after considering exposure time.
A well-designed Auto Exposure algorithm determines when gain should be increased and when adjusting shutter speed or aperture would produce better image quality.
The Role of ISP Tuning
Auto Exposure algorithms require extensive tuning to deliver consistent performance across different lighting conditions.
Engineers optimize numerous parameters, including:
-
Target brightness level
-
Exposure convergence speed
-
Gain limits
-
Maximum exposure time
-
Flicker avoidance
-
Highlight protection
-
Shadow preservation
-
Scene weighting
The AE algorithm must also work together with other ISP functions, including:
-
Auto White Balance (AWB)
-
Auto Focus (AF)
-
HDR processing
-
Noise Reduction
-
Tone Mapping
-
Gamma Correction
Proper tuning ensures that these image processing stages work together to produce natural-looking, high-quality images.
Common Challenges in Auto Exposure
Developing a reliable Auto Exposure system requires balancing multiple performance objectives.
Rapid Lighting Changes:
Scenes that transition quickly between dark and bright environments require fast exposure adjustments without introducing noticeable brightness fluctuations.
Backlit Scenes:
Strong backlighting can cause the camera to expose for the bright background while leaving the foreground too dark. Advanced AE algorithms use scene analysis to better balance these situations.
Low-Light Operation:
In dim environments, the algorithm must balance image brightness, motion blur, and sensor noise while maintaining usable image quality.
Flickering Light Sources:
Indoor lighting powered by alternating current can introduce flicker if exposure timing is not synchronized. Many AE systems include anti-flicker algorithms that adjust shutter timing to reduce this effect.
Applications That Benefit from Auto Exposure
Auto Exposure algorithms are used in nearly every modern digital camera system, but they are especially important in applications where lighting conditions change frequently.
Automotive Systems:
Vehicle cameras must adapt quickly to changing environments such as tunnels, headlights, shadows, and direct sunlight.
Security Cameras:
Surveillance systems operate continuously throughout the day and night, requiring reliable exposure adjustments under varying lighting conditions.
Industrial Automation:
Machine vision systems use Auto Exposure to maintain consistent image quality when inspecting parts under changing factory lighting.
Robotics and Embedded Vision:
Robots rely on properly exposed images to improve the accuracy of computer vision and AI algorithms as they move through different environments.
Medical Devices:
Medical imaging systems require consistent exposure to ensure accurate visualization and repeatable image quality.
Conclusion
Auto Exposure algorithms are a fundamental part of the Image Signal Processor, enabling cameras to automatically adapt to changing lighting conditions while maintaining optimal image brightness. By intelligently controlling exposure time, gain, and aperture, AE algorithms help produce clear, balanced images across a wide range of environments.
When combined with proper ISP tuning, Auto White Balance, Auto Focus, HDR processing, and other image optimization techniques, Auto Exposure ensures reliable and consistent image quality for modern embedded camera systems. As camera technology continues to advance, sophisticated Auto Exposure algorithms will remain essential for delivering high-performance imaging in automotive, industrial, medical, robotics, security, and AI-driven applications.
